MODEL | SR-009SCI | SR-014SCI | SR-017SCII | SR-032UCII | SR-065UCII | SR-075UCII | SR-090UCII | SR-150UCII | SR-180UMII | ||
Ambient temp. range | ℃ | -35~+43 | |||||||||
Power supply | / | 220V 1N~50Hz | 380V 3N~50Hz | ||||||||
Electric shock proof grade | / | Class I | |||||||||
Protection grade | / | IPX4 | |||||||||
Cooling capacity/COP | KW/- | 7.3/2.8 | 12.0/3.0 | 14.0/3.0 | 27.0/2.8 | 53.0/3.0 | 65.0/3.1 | 70.0/2.8 | 130.0/2.8 | 140.0/2.8 | |
Low-temperature heating | KW/- | 5.1/2.2 | 9.2/2.4 | 11.0/2.4 | 20.0/2.3 | 37.5/2.5 | 41.0/2.5 | 55.0/2.4 | 82.0/2.5 | 110.0/2.4 | |
Normal temperature heating（A7W45)/COP | KW/- | 8.8/3.3 | 14.4/3.7 | 16.3/3.6 | 32.0/3.6 | 63.0/3.9 | 73.0/3.9 | 90.0/3.6 | 146.0/3.9 | 180.0/3.6 | |
Heating capacity | A7W35а/COP | KW/- | 9.4/4.1 | 14.5/4.5 | 16.5/4.3 | 33.0/4.3 | 65.0/4.5 | 75.0/4.5 | 92.0/4.3 | 150.0/4.5 | 185.0/4.3 |
A-7W45/COP | KW/- | 5.8/2.3 | 9.4/2.6 | 11.3/2.7 | 23.5/2.6 | 41.0/2.6 | 45.0/2.6 | 62.0/2.6 | 90.0/2.6 | 122.0/2.6 | |
A-15W45/COP | KW/- | 4.5/2.2 | 8.0/2.2 | 9.6/2.2 | 19.5/2.2 | 34.0/2.2 | 38.0/2.2 | 50.0/2.2 | 76.0/2.2 | 100.0/2.2 | |
A-20W45/COP | KW/- | 4.2/1.9 | 6.5/1.9 | 7.9/2.0 | 16.5/2.0 | 30.2/2.0 | 33.0/2.0 | 43.0/2.0 | 66.0/2.0 | 86.0/2.0 | |
Rated cooling input power | KW | 2.61 | 4 | 4.67 | 9.6 | 17.7 | 21 | 25 | 46.4 | 50 | |
Low temperature heating | KW | 2.32 | 3.83 | 4.58 | 8.7 | 15 | 16.4 | 22.9 | 32.8 | 45.8 | |
Normal temperature heating | KW | 2.5 | 4 | 4.5 | / | 16.2 | 18.7 | 25 | 37.4 | 50 | |
Max working current | A | 20 | 32 | 14.5 | 25 | 47 | 55 | 65 | 110 | 130 | |
Compressor | Type | / | Scroll | ||||||||
Quantity | PCS | 1 | 2 | 4 | |||||||
Fan motor | Quantity | PCS | 1 | 2 | 4 | ||||||
Max. water temperature | ℃ | 60 | |||||||||
Water yield | L/h | 1600 | 2500 | 2800 | 4600 | 9100 | 11200 | 12000 | 22400 | 24100 | |
Refrigerant type/Weight | -/kg | R407/R410/R22 | 410a | ||||||||
Dimension (W×D×H) | mm | 1087x435x900 | 1052x362x1346 | 1082x362x1346 | 1530×750×1370 | 2100×1100×2000 | 2100×2060×2250 | ||||
Packing dimension | mm | 1230x500x1050 | 1160x540x1460 | 1230x500x1500 | 1650×850×1470 | 2260×1360×2270 | 2230×2250×2400 | ||||
Noise | dB(A) | 54 | 58 | 56 | 65 | 68 | 68 | 68 | 69 | 69 | |
Net weight | kg | 70 | 140 | 140 | 350 | 850 | 950 | 950 | 1900 | 1900 | |
Gross weight | kg | 80 | 150 | 150 | 380 | 900 | 1000 | 1000 | 2000 | 2000 | |
Circulating pipe diameter | inch | G1" | G1" 1/4 | G1" 1/4 | G1.5" | DN50 flange | DN50 flange | DN65 flange | DN65 | DN65 external thread | |
Remarks:
1. Test conditions: (DB/WB) 7°C/6°C, inlet water temperature 30°C, outlet water temperature 35°C.
2. Due to product improvement, above datas are subject to change without prior notice, please take the nameplate as standard.
Features:
Heating capacity range: 9KW, 14KW, 17KW, 32KW,45KW, 65KW, 75KW, 90KW, 150KW
Copeland EVI compressor and Scheider electrical components.
Working ambient temperature down to -30℃
Automatically defrosting
Intelligent controller and adjustment by microprocessor
High efficiency tube in shell heat exchanger

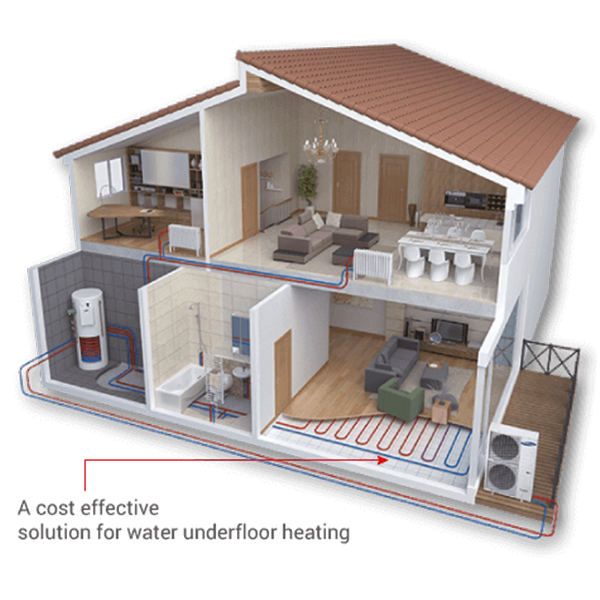

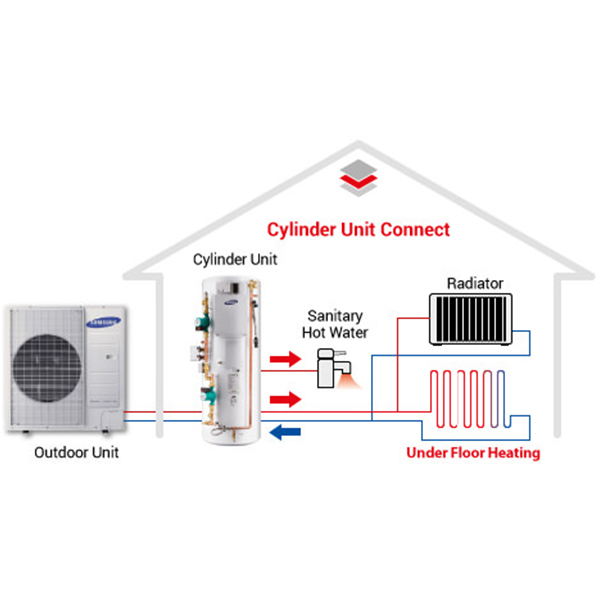

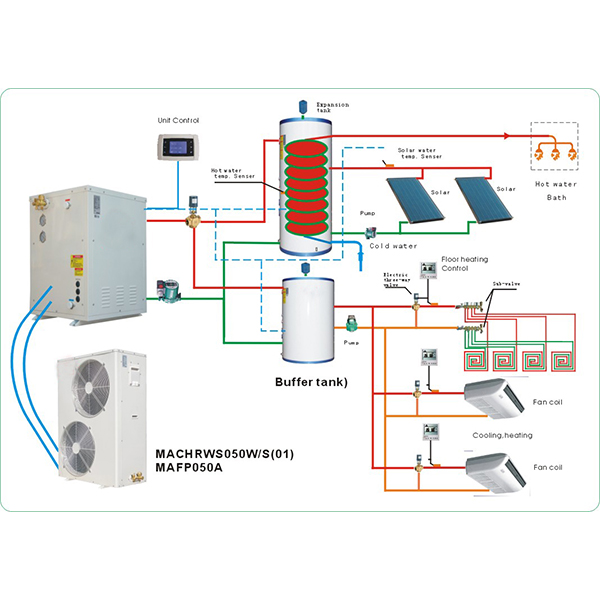

Match with floor heating, fan coils, and Central AC function
Optional:
Galvanized metal cabinet or stainless steel cabinet
R410a, R22, R407c refrigerant is available
Only heating function is optional
Application:
It is suitable for heating and hot water supply of family, villa, apartment,business restaurant, hotel and multi-floor living building in city and village.
