Split heat pipe solar system

Categories: Products, Bluetooth,

Product Description

Technical Specification

Model

Specification

Quantity
  20GP/40GP/40HQ
(sets)

Vacuum Tube

Water Tank

Diameter
(mm)

Length
(mm)

No.
(pcs)

Absorb area
(m2)

Inner Dia.
(mm)

Outer
  Dia.
  (mm)

Capacity

DX-SPHS/SPHD-12

58

1800

12

1.66

365

470

100L

49/100/122

DX-SPHS/SPHD-18

18

2.57

365

470

150L

35/72/88

DX-SPHS/SPHD-24

24

3.41

440

540

200L

29/59/72

DX-SPHS/SPHD-30

30

4.25

440

540

250L

24/49/60

DX-SPHS/SPHD-36

36

5.1

480

600

300L

19/39/48

DX-SPHS/SPHD-48

48

6.8

600

700

400L

15/31/38

DX-SPHS/SPHD-60

60

8.5

600

700

500L

13/28/34




Component of production

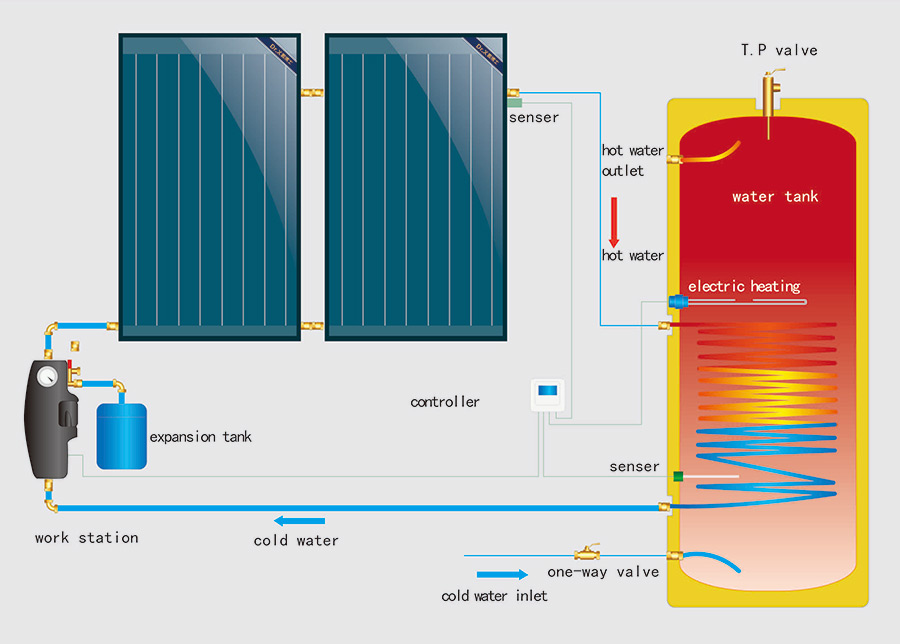

This system is specially designed for household, villa and small area unit by our company. It consists of followed parts:flat plate solar collector, storage water tank , working station system expansion case.

Specialty

1.Collector separate with water tank, system works by pump circulation.
2.Automatic controlling system, reliable operation, supply constant water temperature.
3.Water tank can put anywhere inside house, avoid gradual rust and last long lifetime.

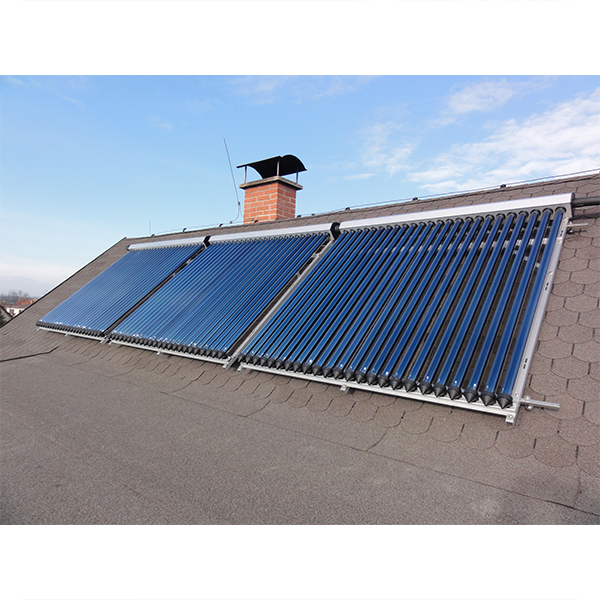

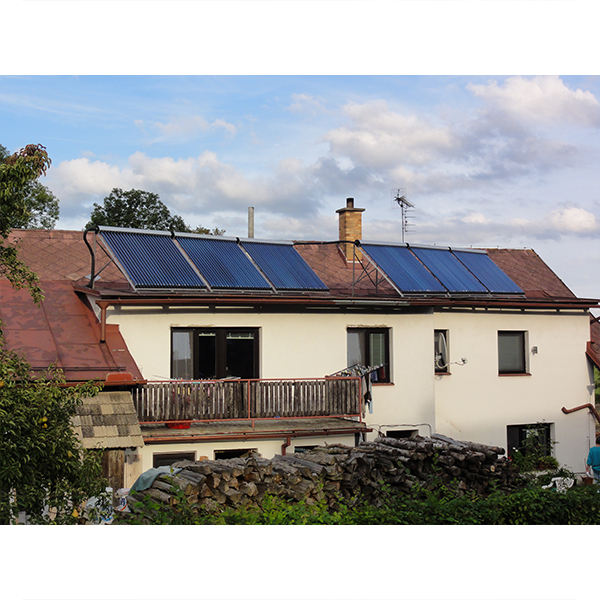

4.Collector can be installed wherever available like balcony, wall, roof etc.,
5. Easy and convenient installation and operation, unified with the building completely.
