Description

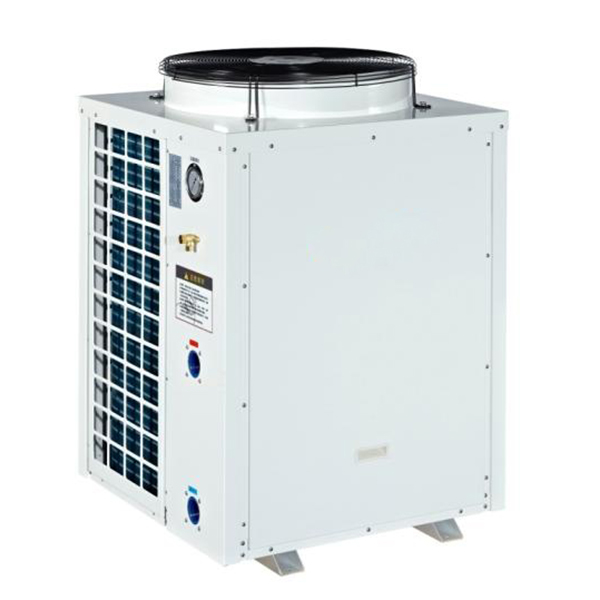

This commercial swimming poor heat pump are specially designed and engineered for commercial pool or spa water temperature control. The V-shape design condensers air flow direction and intelligent control system are let the units high efficiency and stable working performance The COP of this type heat pump could be as high as 5.4 at working condition of 20/15(DB/WB), which saves you at least 80% energy compared with traditional electric swimming pool heating equipments. Suitable for large pools in hotel, public parks, schools , sport center, gyms etc.
Features:
1) PVC Titanium heat exchanger with full resistance against corrosion, more durable.
2) Compact structure, easy demountable for access.
3) High efficiency compressor, saving energy.
4) Flow switch for water flow protection.
5) Intelligent controller and adjustment by quick mind microprocessor.
6) Intelligent LCD display wired controller.
7) Air exchanger (fins-coil )with hydrophilic coating.
8) Automatic defrosting function included.
Optional: R410a, R22, R407c refrigerant is available.
Commercial Swimming Pool Heat Pump | ||||||||
MODEL | SR-010UI | SR-018UII | SR-023UII | SR-036UII | SR-045UII | SR-070UII | SR-090UII | |
Heating mode | / | Cyclic | ||||||
Ambient temp. range | ℃ | -15~+43℃ | ||||||
Rated heating capacity | KW | 11 | 19 | 23 | 38 | 45 | 70 | 90 |
COP | W/W | 5.2 | 5.2 | 5.4 | 5.2 | 5.4 | 5.2 | 5.4 |
Nominal input power | KW | 2.12 | 3.65 | 4.25 | 7.31 | 8.3 | 13.46 | 16.7 |
Nominal input current | A | 10 | 13 | 14.5 | 13.06 | 26 | 50 | 48 |
Power supply | / | 220V/50Hz | 380V 3N~50Hz | |||||
Protection grade | / | IPX4 | ||||||
Safety function | / | High and low pressure protection,Overload protection,Temperature protection | ||||||
Refrigerant type/weight | -/kg | R410a/1.4 | R410a/2.7 | R410a/3.0 | R410a/2.5×2 | R410a/3.0×2 | R410a/5×2 | R410a/7.5×2 |
Compressor QTY | PCS | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
Compressor type | / | Scroll | ||||||
Max.temp.outlet water | ℃ | 40 | ||||||
Water side heat exchanger type | / | Titanium tube heat exchanger | ||||||
Air side heat exchanger type | / | Fin heat exchanger | ||||||
Circulating waterpipe nozzle | inch | G1'' | G1.5'' | G1.5'' | G1.5'' | G1.5'' | G2'' | G2'' |
Outlet nozzle | inch | G1'' | G1.5'' | G1.5'' | G1.5'' | G1.5'' | G2'' | G2'' |
Circulating water quantity | m3/h | 4.73 | 8.17 | 9.89 | 19 | 39 | ||
Air out type | / | TOP | ||||||
Fan QTY | PCS | 1 | 1 | 1 | 2 | 2 | 3 | 2 |
Noise | dB/(A) | 56 | 56 | 56 | 59 | 68 | 68 | 69 |
Machine dimension (W×D×H) | mm | 750×690×870 | 750×690×1070 | 820×790×1080 | 1500×690×1070 | 1500×690×1380 | 2095×1005×1855 | |
Packing dimension (W×D×H) | mm | 800×740×1000 | 800×740×1200 | 920×840×1210 | 1580×800×1200 | 1580×740×1550 | 2195×1105×1955 | |
Net weight | kg | 110 | 130 | 150 | 230 | 330 | 700 | 800 |
Gross weight | kg | 130 | 160 | 170 | 260 | 360 | 750 | 850 |
